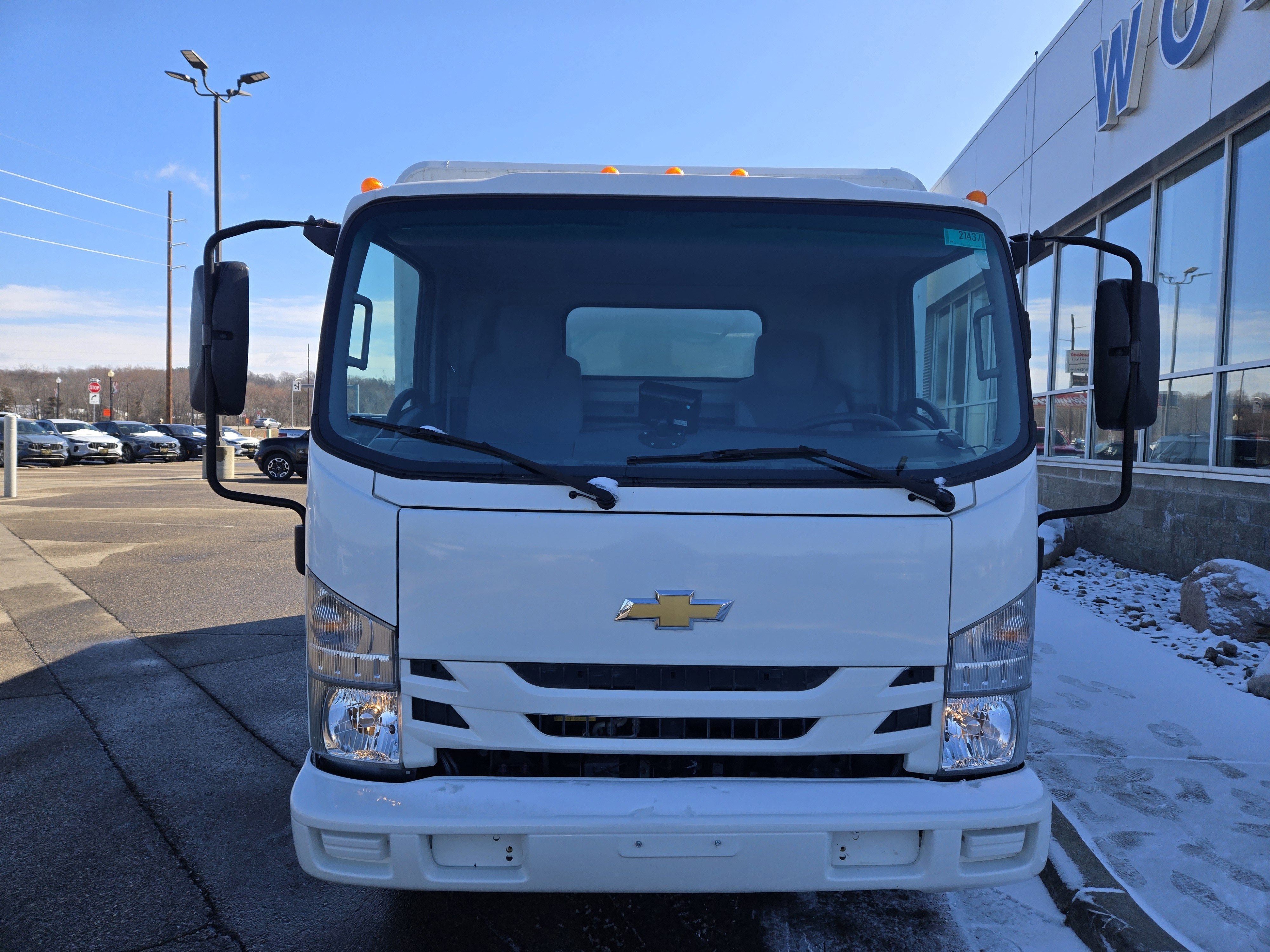

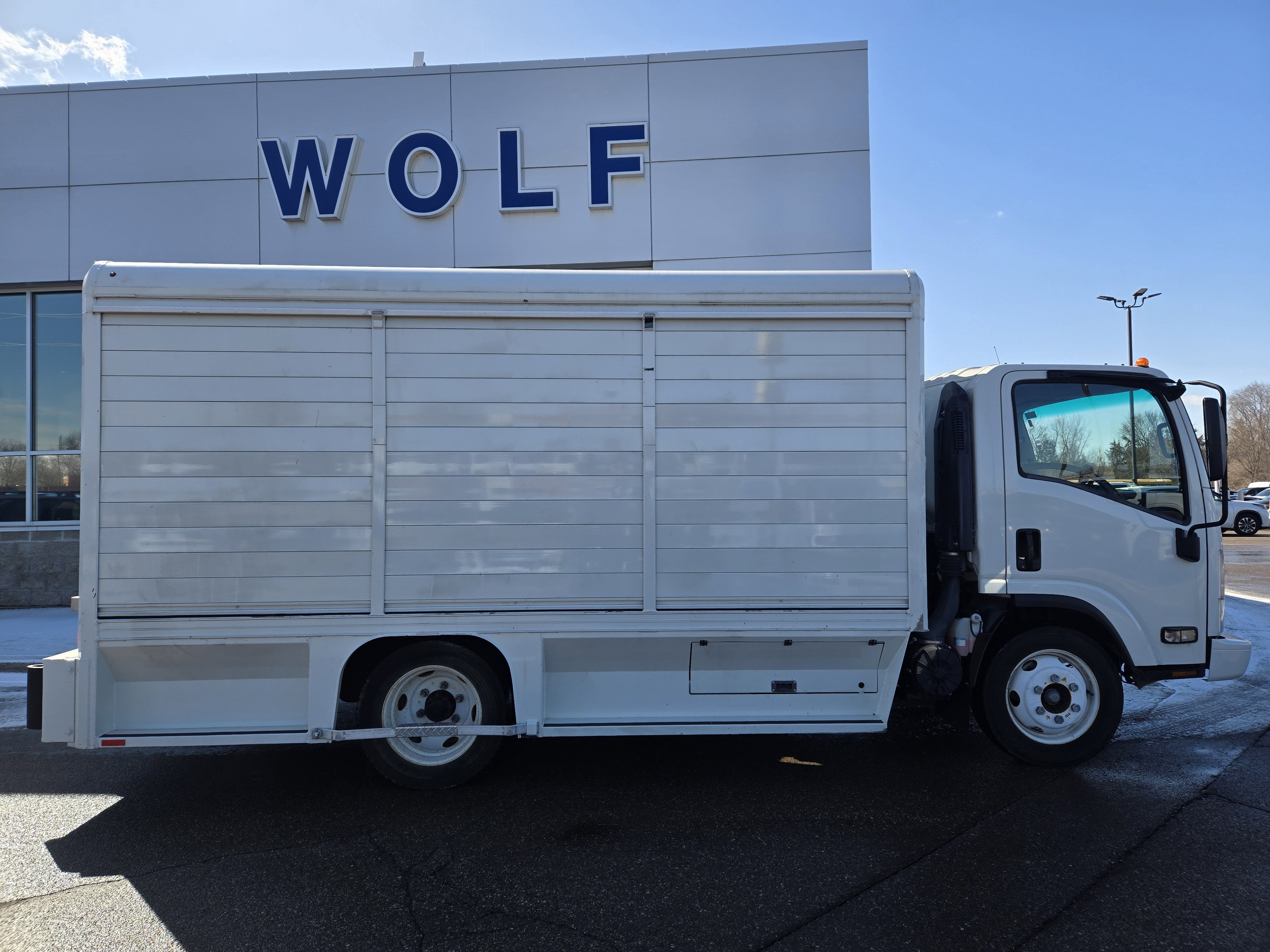

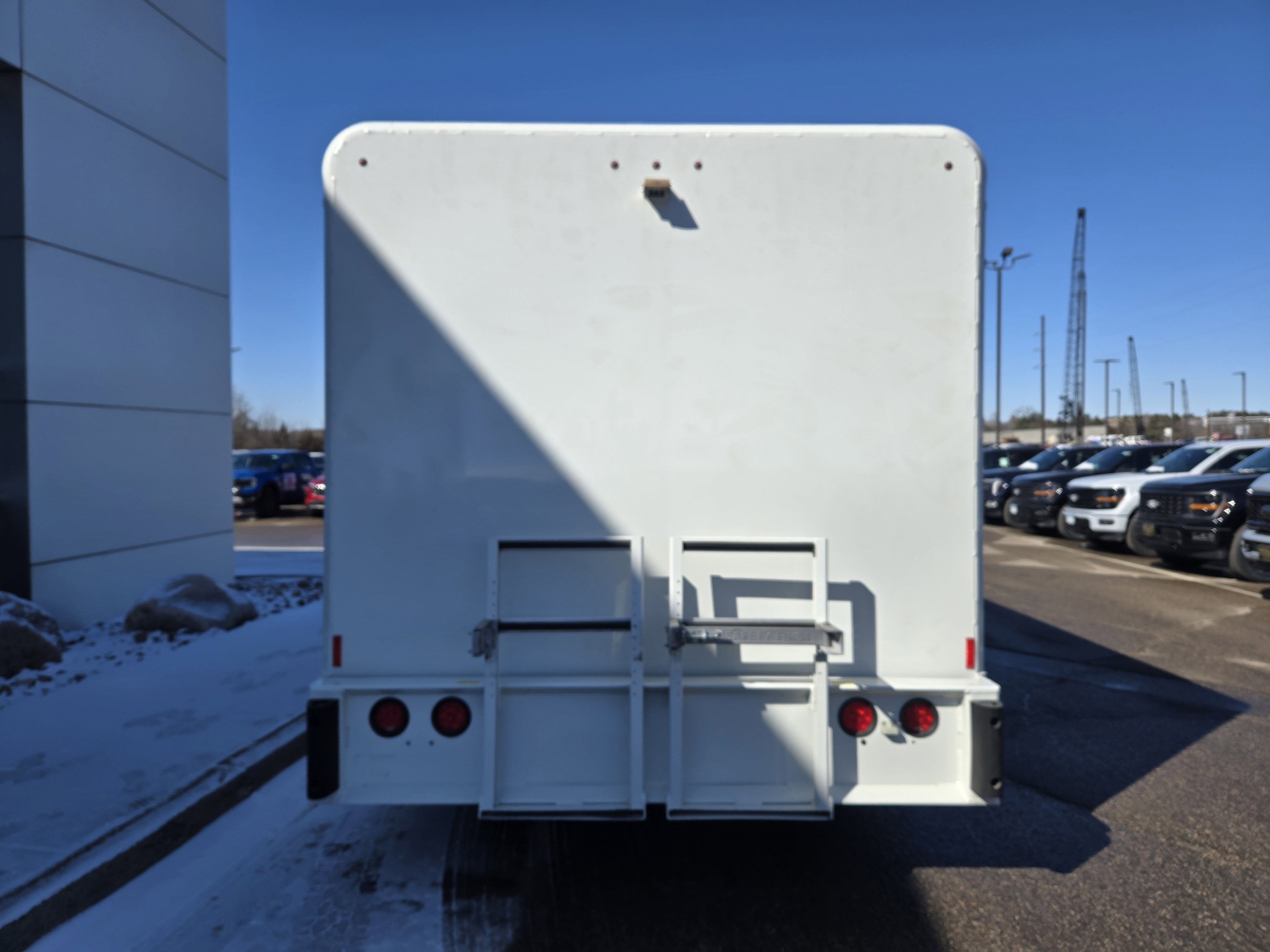

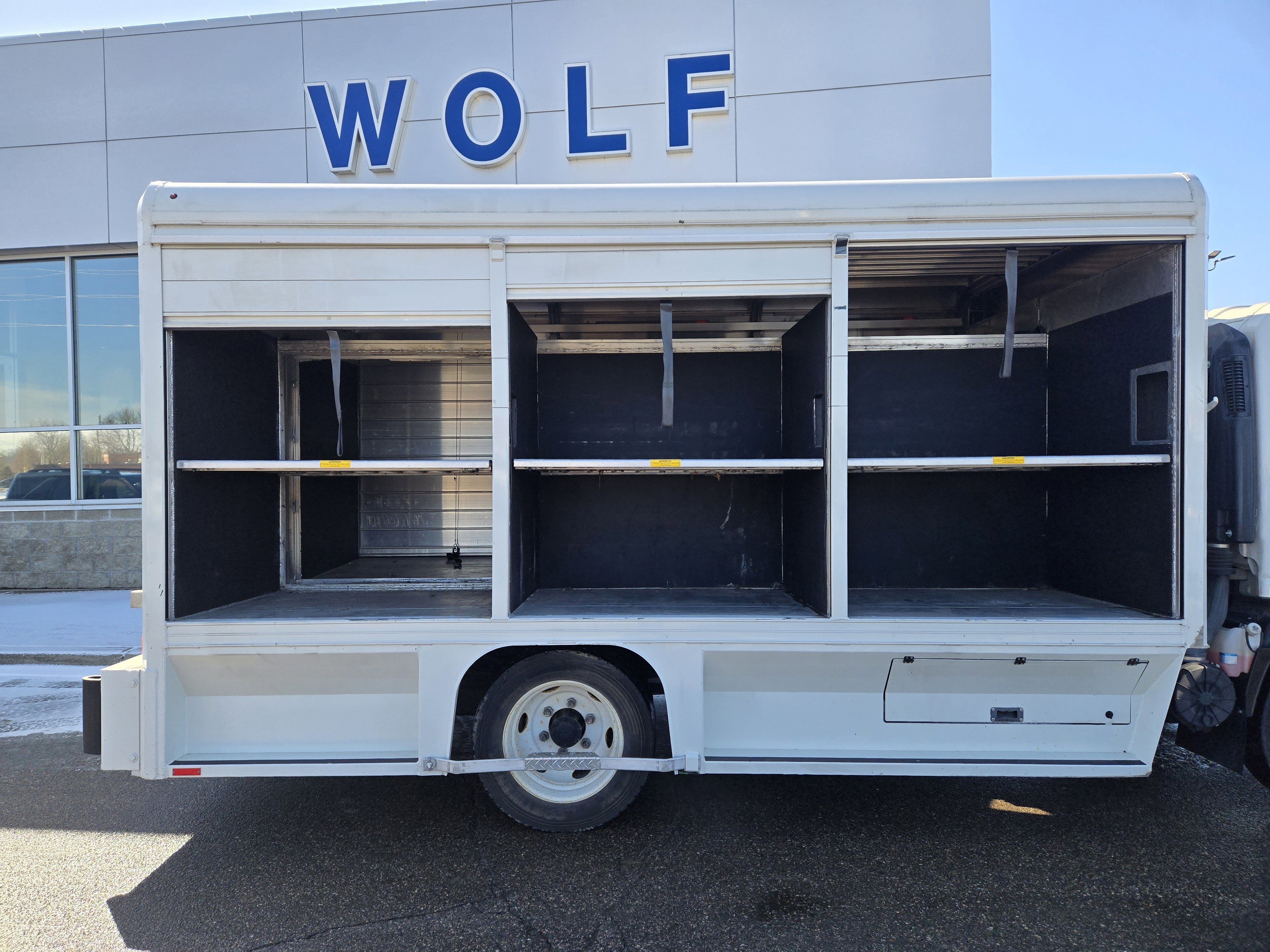

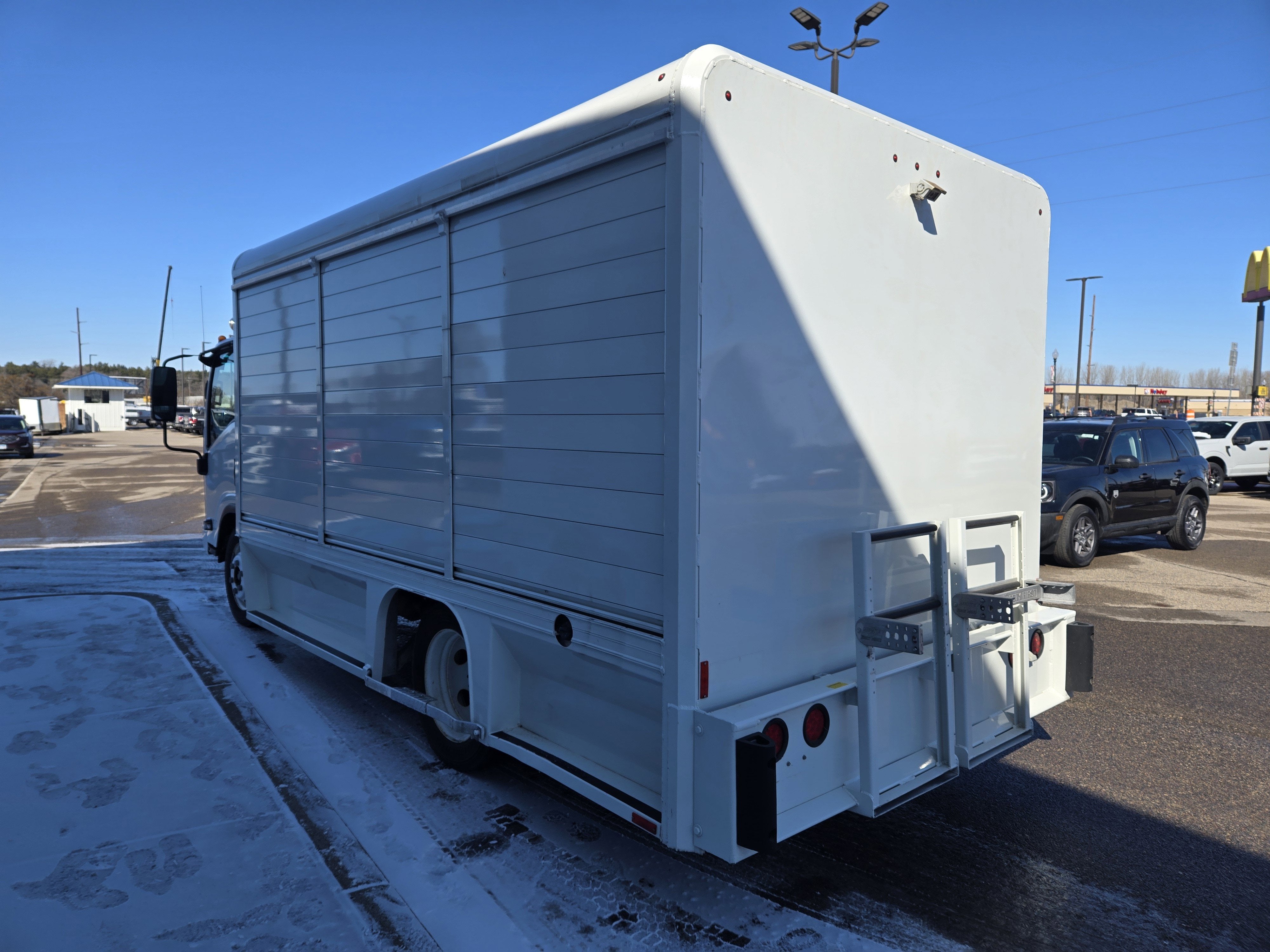

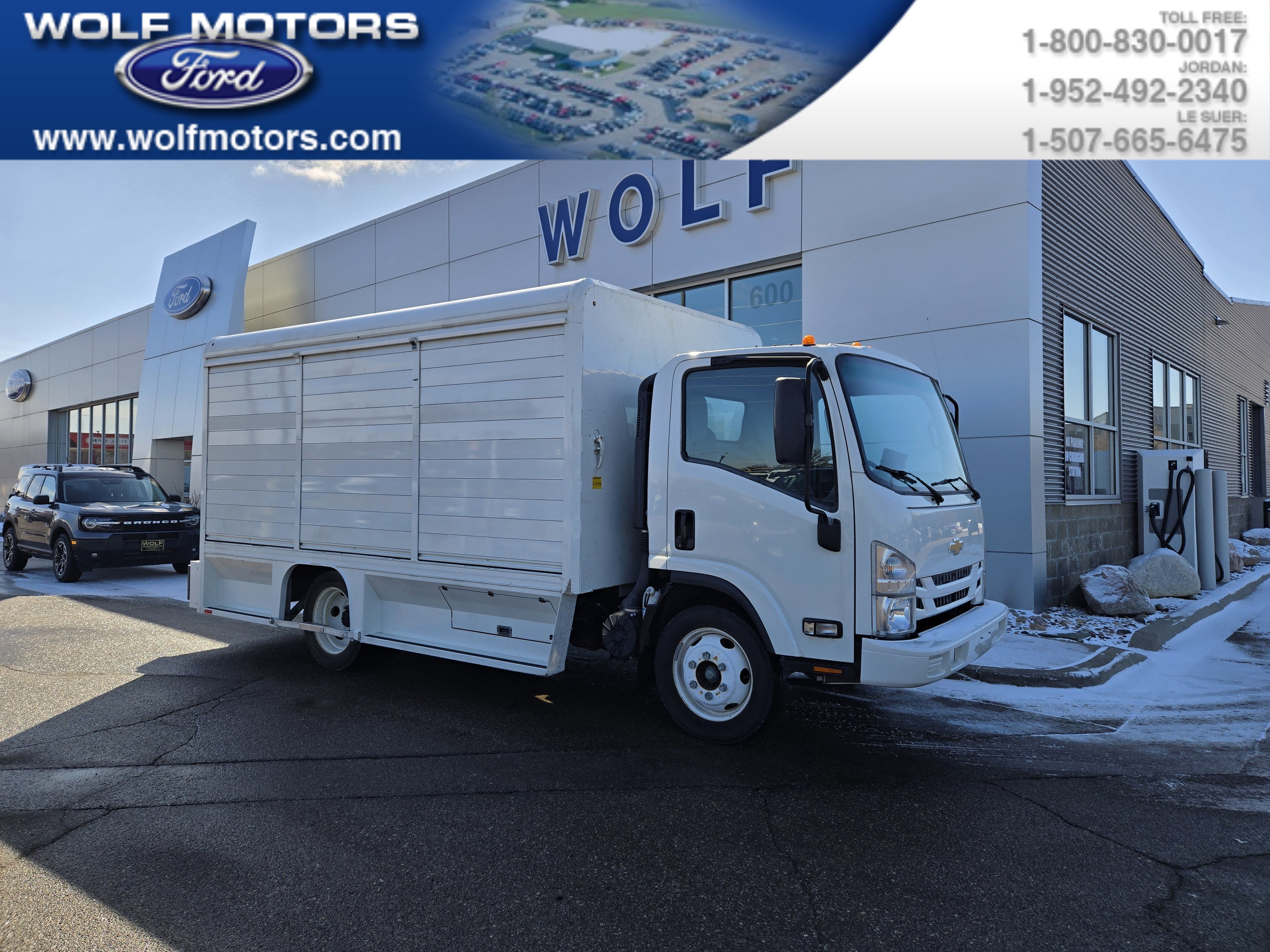

2018 Chevrolet 4500 LCF Gas
1
/
22
2018 Chevrolet 4500 LCF Gas
Available
- Internet Price $29,995
*Please Note: We turn our inventory daily, please check with the dealer to confirm vehicle availability.
- Internet Price $29,995
*Please Note: We turn our inventory daily, please check with the dealer to confirm vehicle availability.
Visit our Store
- Wolf Motors Ford
-
600 West 2nd Street
Jordan, MN 55352
- Sales: 612-464-5760
- Service: 507-222-8050
- Parts: 612-464-9404
- Parts: 952-295-1291
Vehicle Information
VIN:
54DCDW1B9JS807848
Stock #:
UT21437
Model Code:
CP32003
-
Body Style Regular Cab Chassis-Cab -
Exterior Color Arc White
-
Interior Color Dark Pewter
-

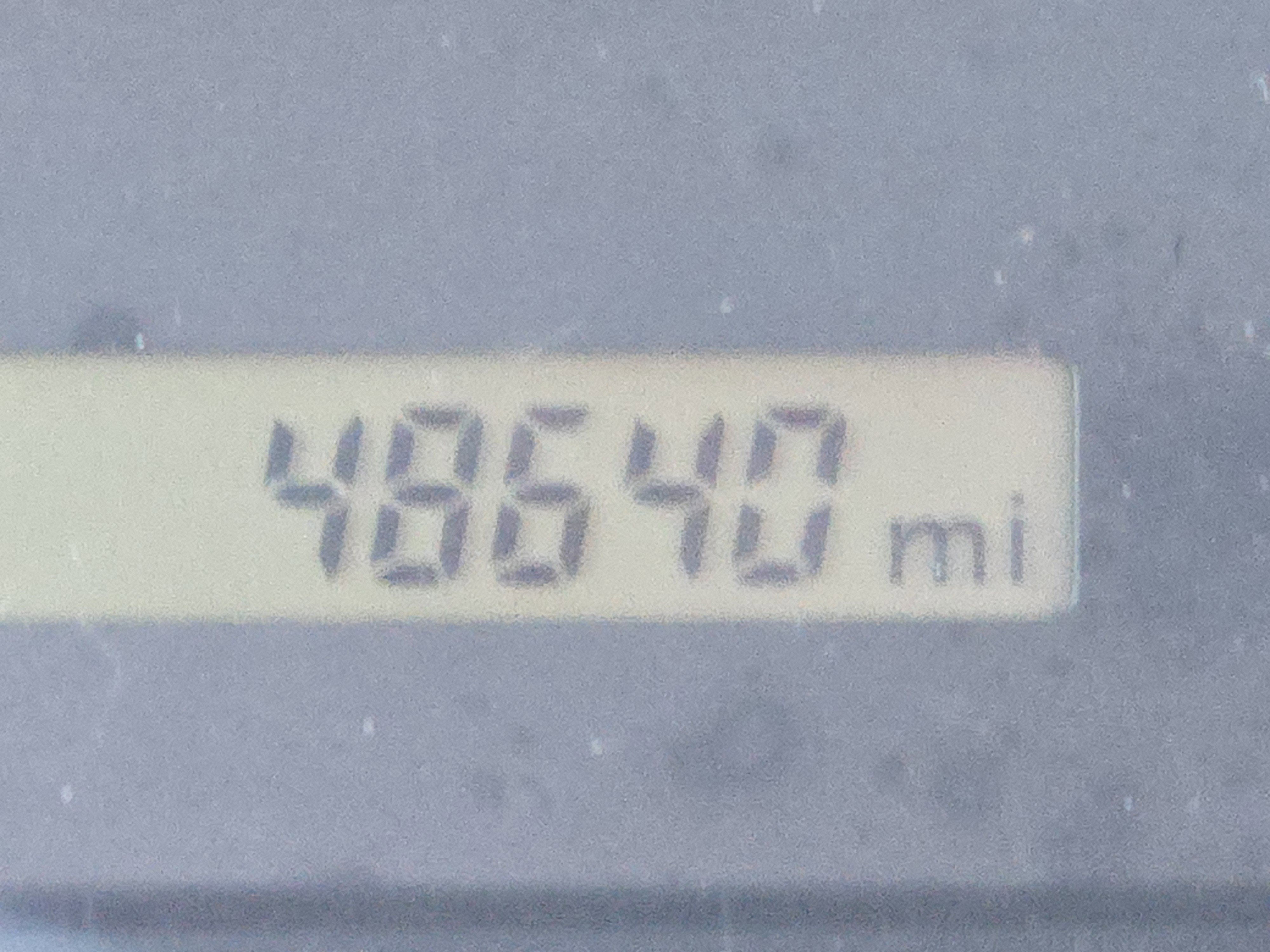

Mileage 48,640
-
Engine 6.0L -
Transmission Automatic -
Fuel Type Gasoline Fuel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Bluetooth®
- Cruise Control
Dealer Comments
KBB.com 10 Most Awarded Brands. Only 48,350 Miles! This Chevrolet 4500 LCF Gas delivers a Gas V8 6.0L/365 engine powering this Automatic transmission. VERY DARK PEWTER, CLOTH SEAT TRIM, TRANSMISSION, 6-SPEED AUTOMATIC, 6L90-E HYDRA-MATIC WITH LOCK-UP CONVERTER AND OVERDRIVE. Ratios: Gear and Ratios 4.027, 2.364 ,1.532, 1.152, 0.852, 0.667, Rev. 3.064:1 (STD), SEAT, FRONT HIGH BACK BUCKET DRIVER AND PASSENGER tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat (STD).
This Chevrolet 4500 LCF Gas Features the Following Options
PREFERRED EQUIPMENT GROUP includes standard equipment, ENGINE, VORTEC 6.0L V8 SFI, GMPT-V8 8 CYLINDER V BLOCK, FOUR CYCLE OVERHEAD VALVE WATER COOLED Vortec 6.0L SFI V8 297 hp [221.5 kW] @ 4300 rpm, 372 lb-ft of torque [504.0 N-m] @ 4000 rpm. Electronically-controlled sequential fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm) (STD), AXLE, 4.30 RATIO, AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER, AUXILIARY JACK, USB PORT AND Bluetooth® (STD), ARC WHITE, Windshield wiper, pulse, wet arm, Windshield washer bottle access on passenger side dash when passenger-side door is open, Windows, power, Wheels, 19.5 x 6, K steel, Vehicle Application Truck.
Visit Us Today
Test drive this must-see, must-drive, must-own beauty today at Wolf Motor Co, 600 2nd St W, Jordan, MN 55352.
All Features
- Axle, 4.30 ratio
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Drivetrain, rear-wheel drive
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- Alternator, 145 amps output with integral regulator
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Incomplete vehicle certification
- Wheelbase, 132.5" (336.6 cm)
- GVWR, 14,500 lbs. (6577 kg)
- Front suspension, 8,440 lbs. (3828 kg) tapered leaf, semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
- Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
- Rear axle, 11,020 lbs. (4998 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings
- Vehicle Application Truck
- Fuel tank, 30 Gallon, (113L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
- Exhaust, single outlet

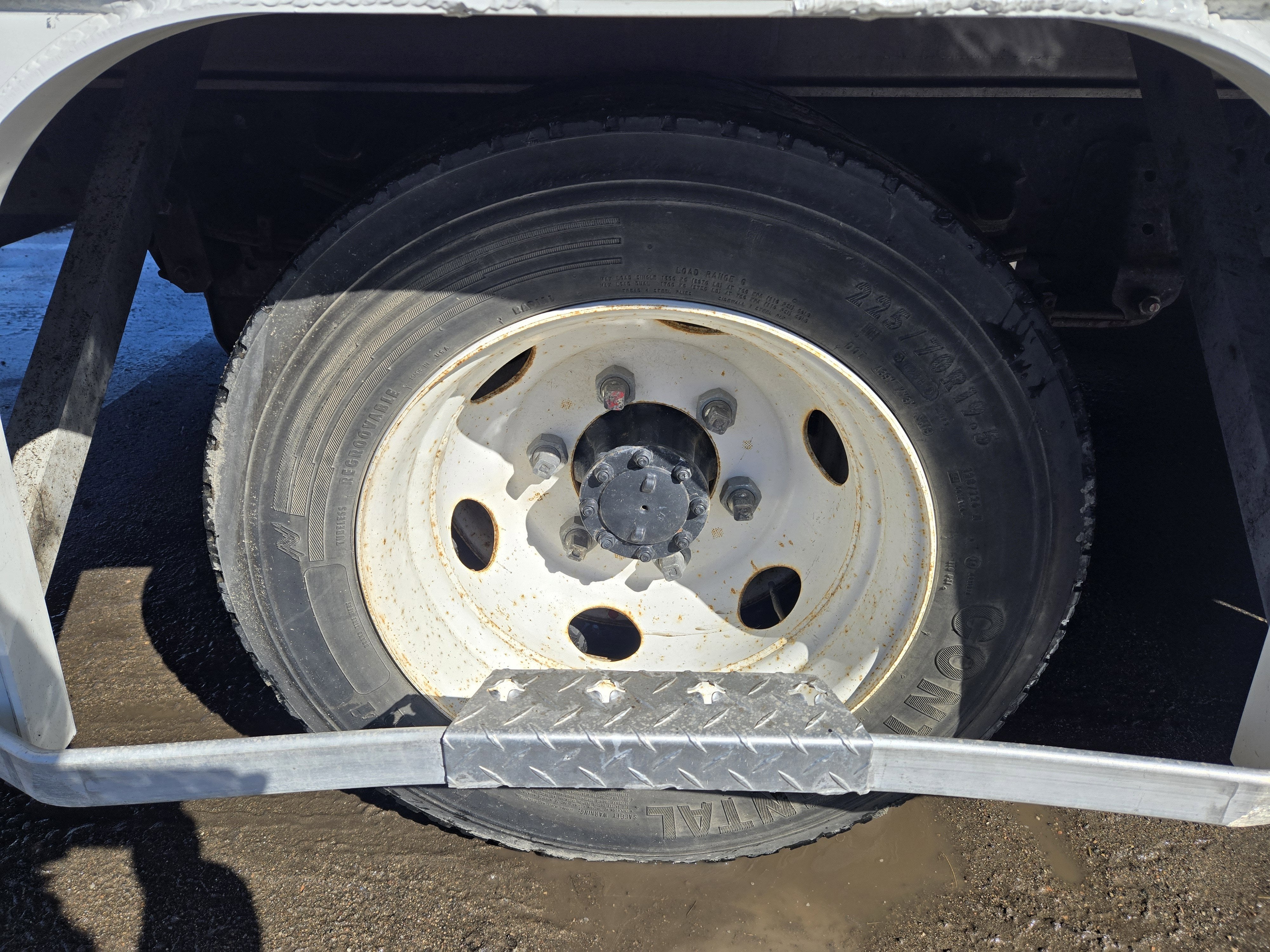

- Wheels, 19.5" x 6", K steel

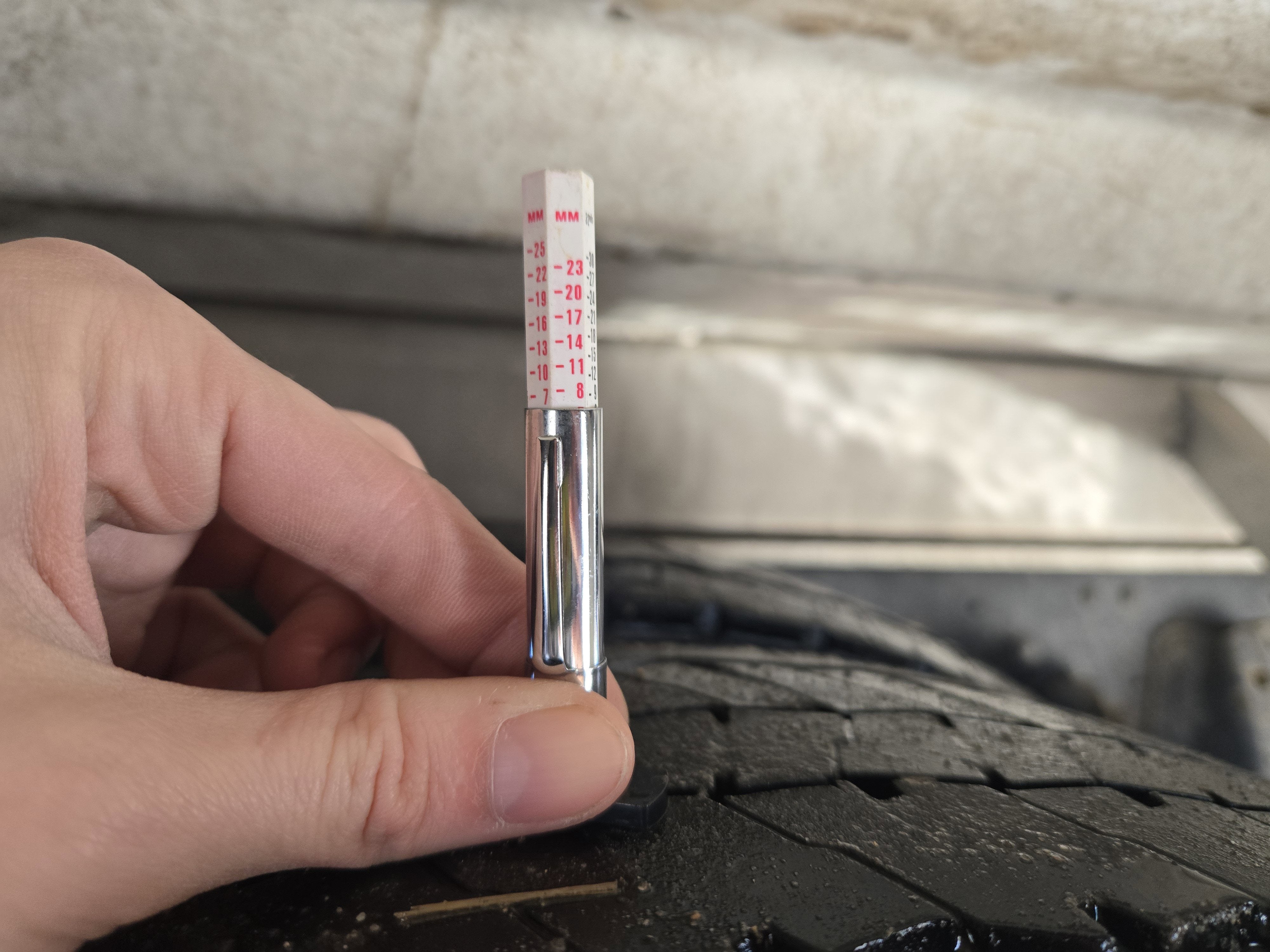

- Tires, front, 225/70R19.5 G 128/126 L BW HWY VAR1
- Tires, rear, 225/70R19.5 G 128/126 L BW HWY VAR1

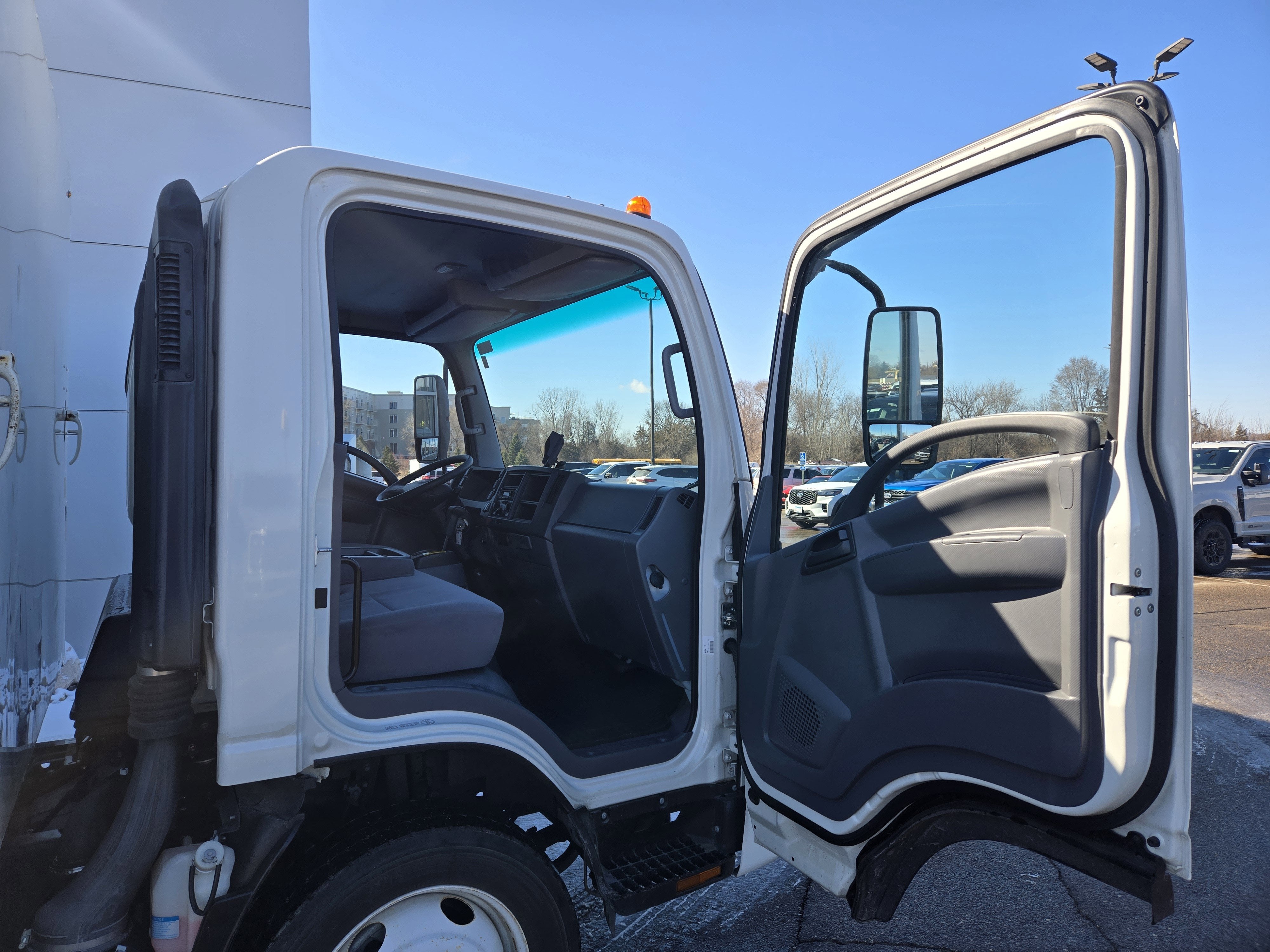

- Assist steps
- Glass, tinted
- Mirror, outside left hand and right hand dual cab mounted exterior with integral convex mirror
- Windshield wiper, pulse, wet arm

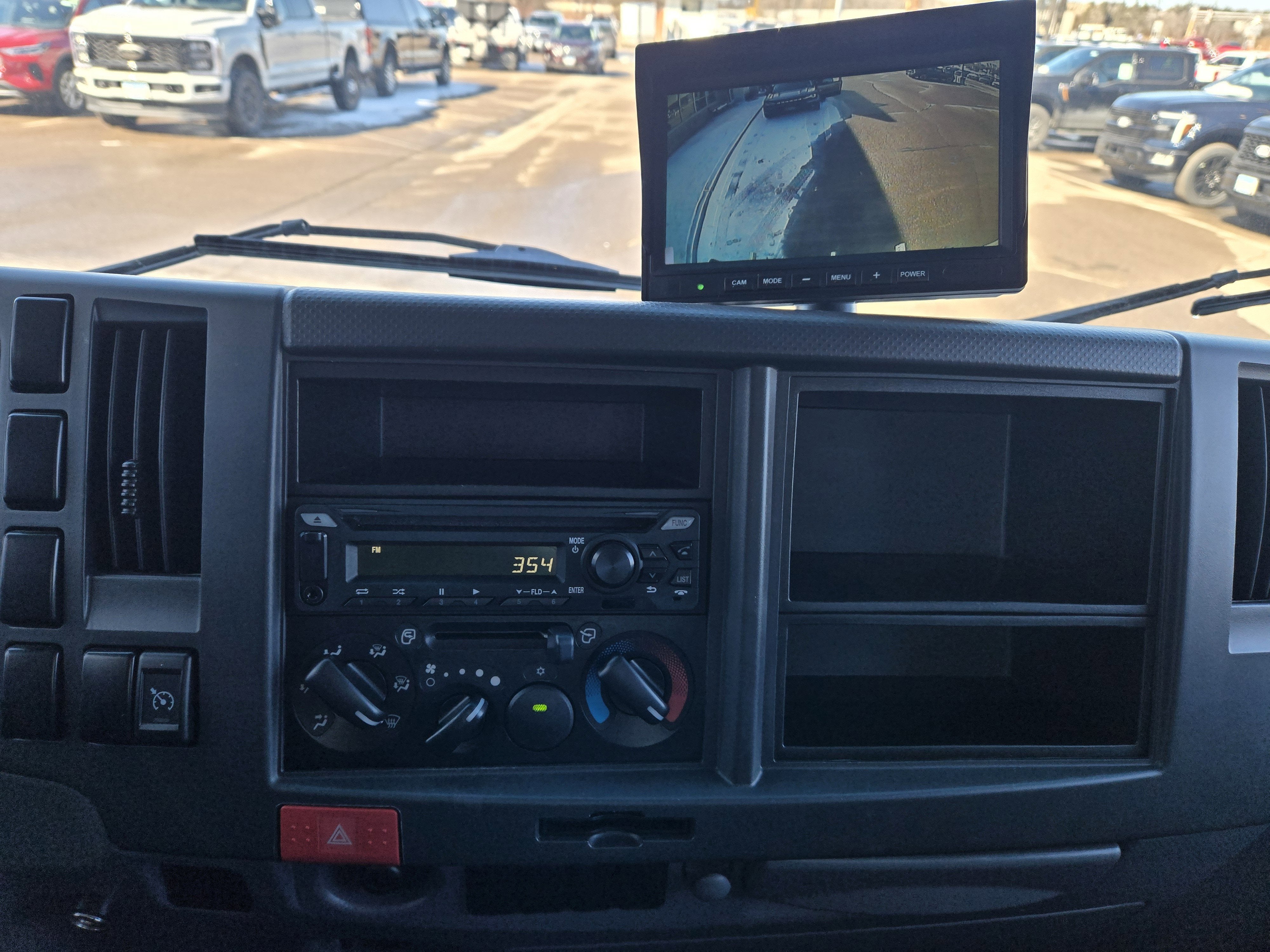

- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth
- Audio system feature, 2 speakers

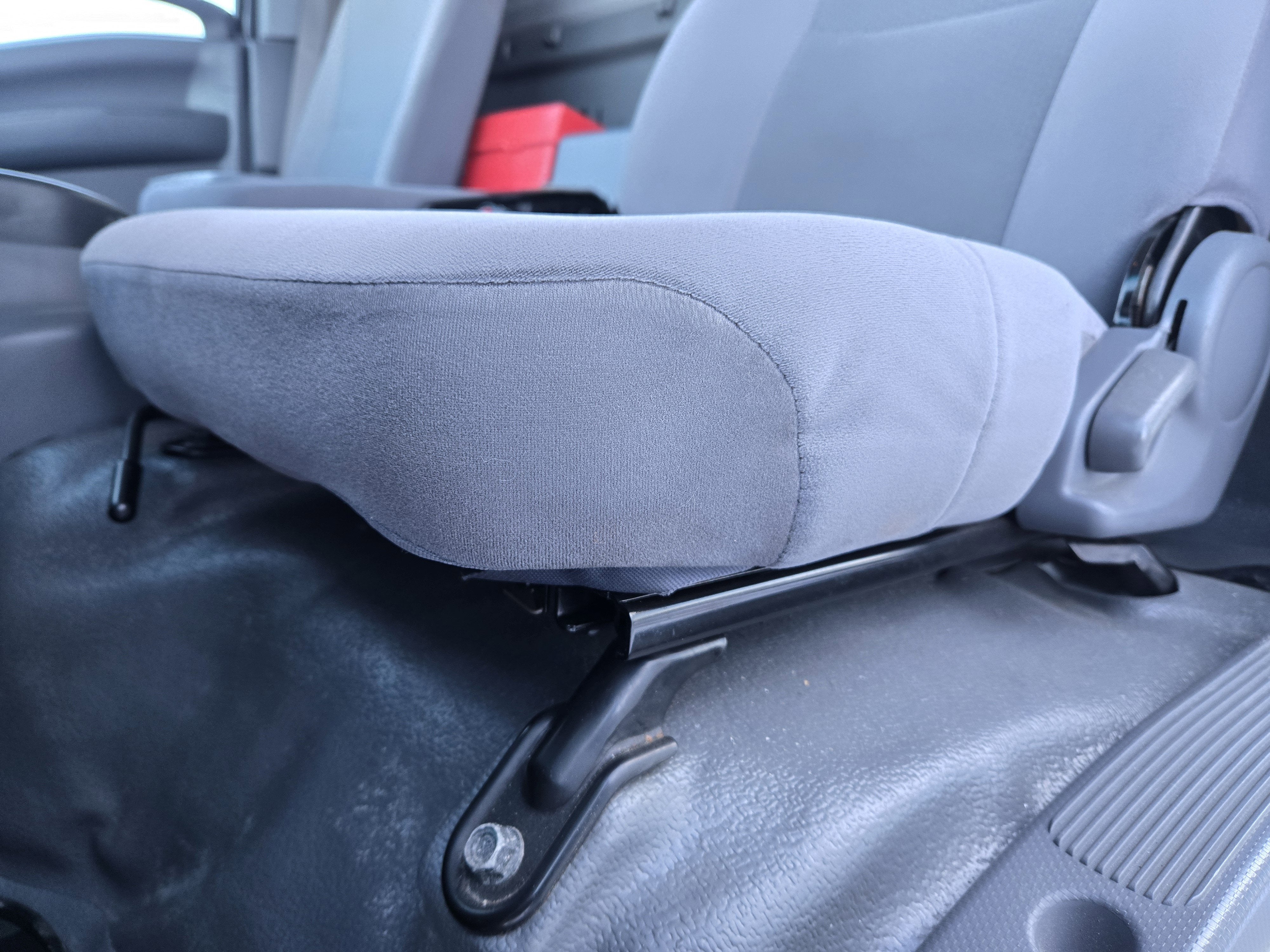

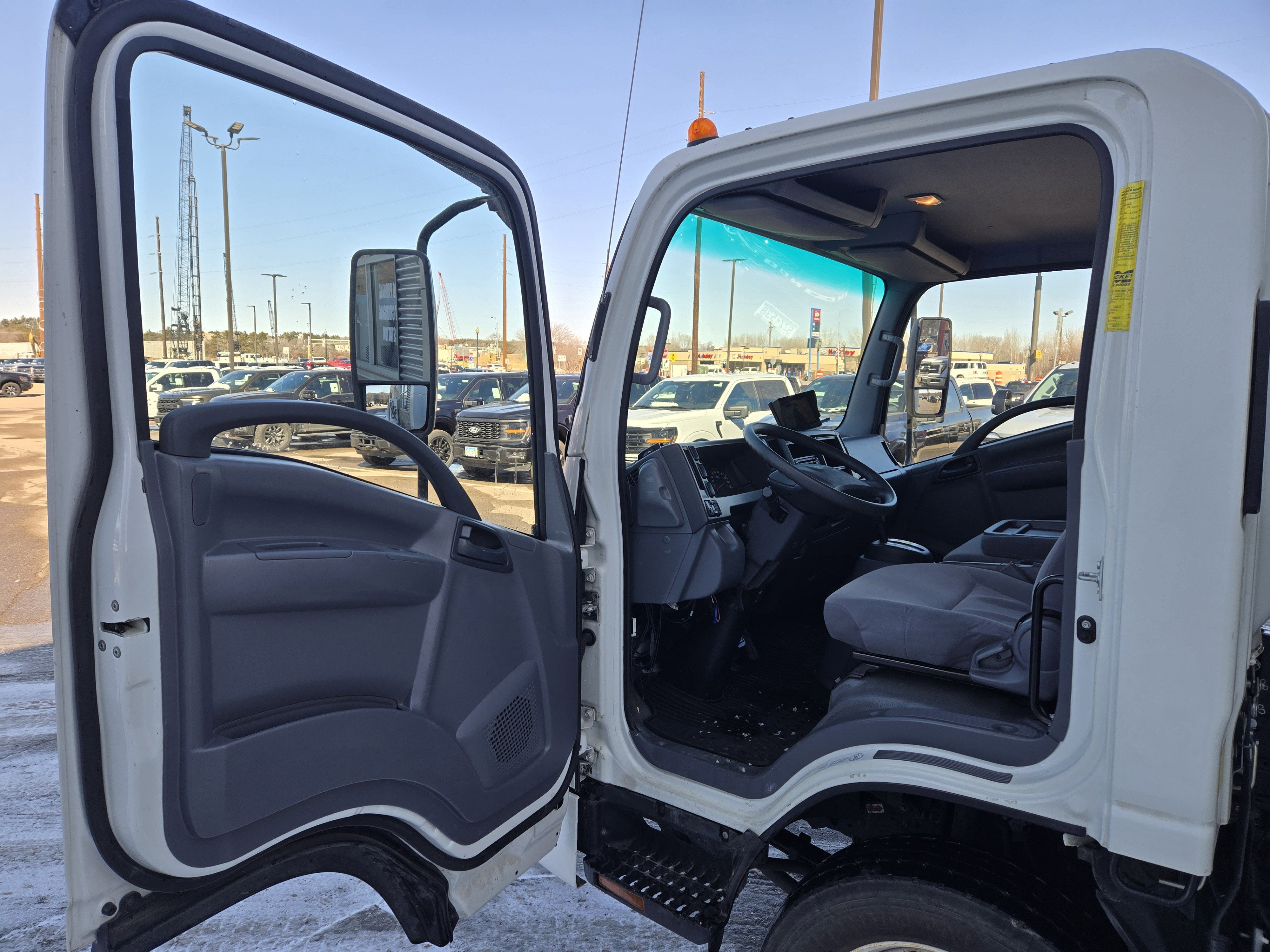

- Seat, front high back bucket driver and passenger tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat
- Seat trim, Cloth
- Cup holders
- Floor mats

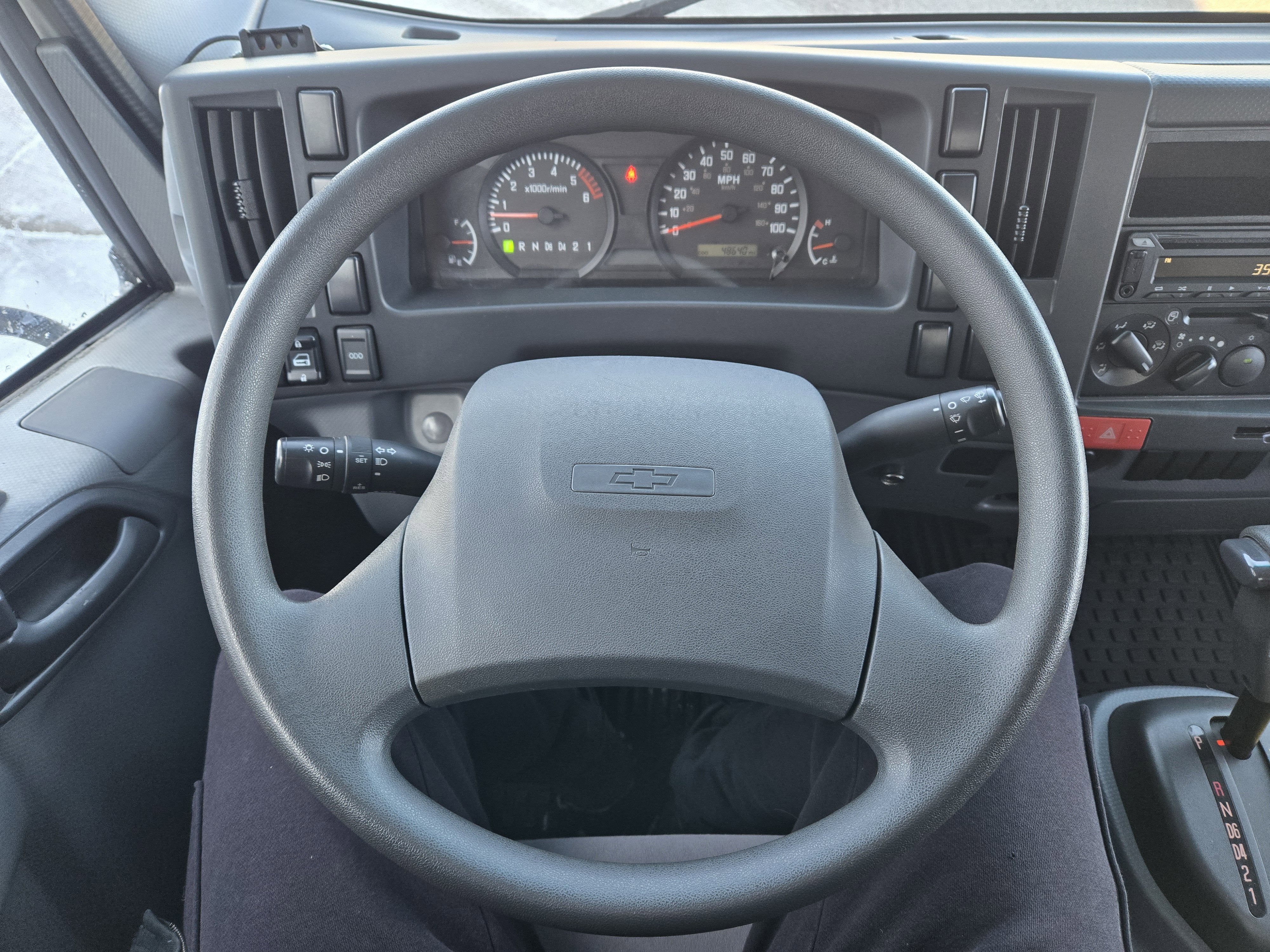

- Steering wheel, urethane
- Steering column, Tilt-Wheel

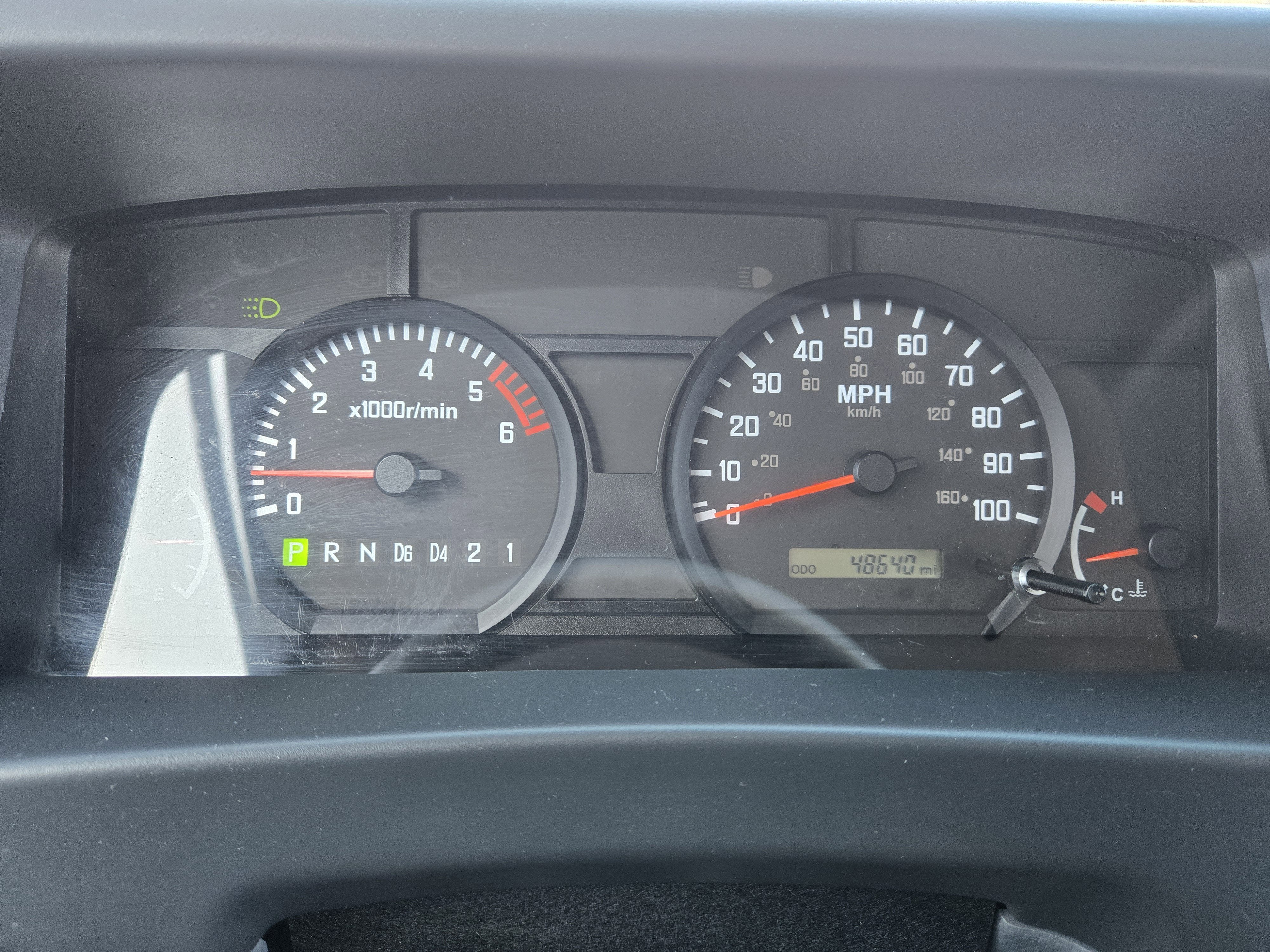

- Driver Information Center

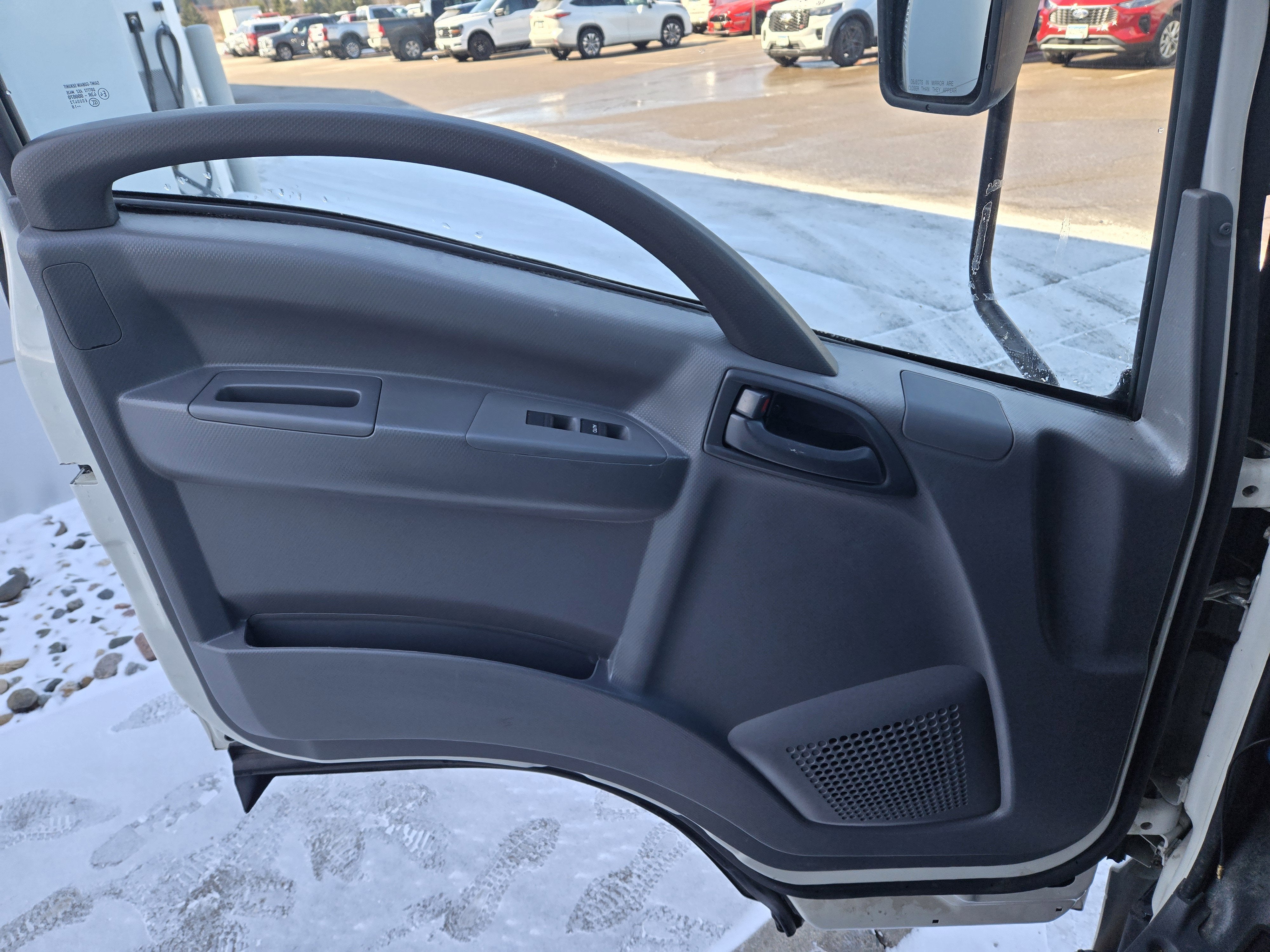

- Windows, power
- Door locks, power
- Cruise control, electronic, automatic
- Air conditioning, single-zone manual, integral in-dash mounted
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Storage, door pockets
- Lighting, interior dome
- Storage, seatback pockets
- Daytime Running Lamps
- ARC WHITE
- WARRANTY 5-YEARS/100 000 MILES (whichever comes first). Covers engine transmission and drive axle

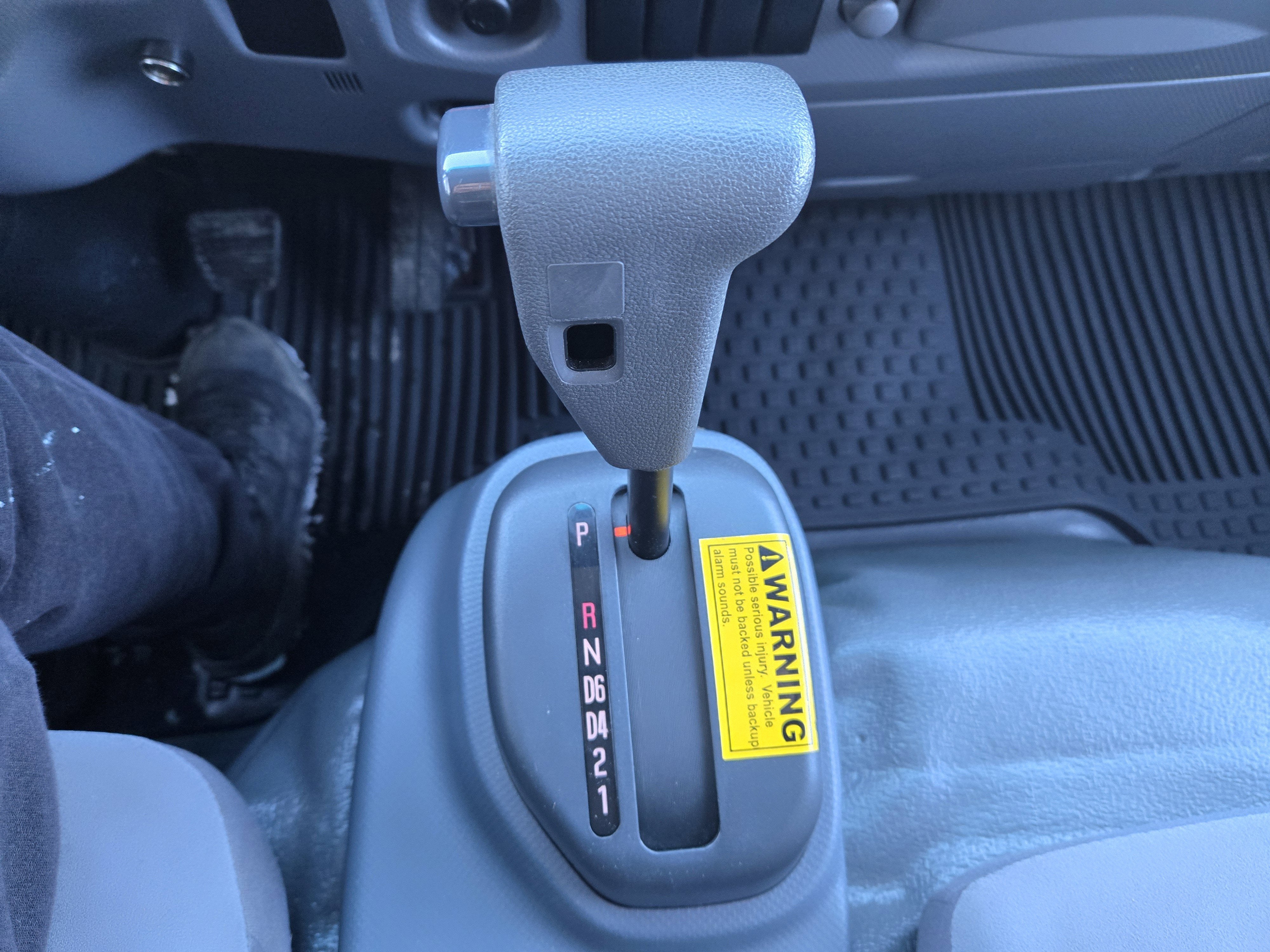

- TRANSMISSION 6-SPEED AUTOMATIC 6L90-E HYDRA-MATIC WITH LOCK-UP CONVERTER AND OVERDRIVE. Ratios: Gear and Ratios 4.027 2.364 1.532 1.152 0.852 0.667 Rev. 3.064:1 (STD)
- PRE-DELIVERY INSPECTION Provides Pre-Delivery Inspection at the Port in cases where the vehicle needs to leave the port directly for the final stage manufacturing process and will not visit a dealer. NOTE: General Motors Company will not pay Dealer for Pre-Delivery Inspections when this option is selected.
- ENGINE VORTEC 6.0L V8 SFI GMPT-V8 8 CYLINDER V BLOCK FOUR CYCLE OVERHEAD VALVE WATER COOLED Vortec 6.0L SFI V8 297 hp [221.5 kW] @ 4300 rpm 372 lb-ft of torque [504.0 N-m] @ 4000 rpm. Electronically-controlled sequential fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control engine oil cooler High Idle Mode (1200 rpm) (STD)
- VERY DARK PEWTER CLOTH SEAT TRIM
- WARRANTY 5-YEARS/125 000 MILES (whichever comes first). Covers engine transmission and drive axle
- SEAT FRONT HIGH BACK BUCKET DRIVER AND PASSENGER tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat (STD)
- AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AUXILIARY JACK USB PORT AND Bluetooth® (STD)
- AXLE 4.30 RATIO
- PREFERRED EQUIPMENT GROUP includes standard equipment
- Cruise Control
- Rear Wheel Drive
- Power Steering
- ABS
- Steel Wheels
- Tires - Front All-Season
- Tires - Rear All-Season
- Running Boards/Side Steps
- AM/FM Stereo
- CD Player
- MP3 Capability
- Bluetooth® Connection
- Auxiliary Audio Input
- Bucket Seats
- Cloth Seats
- Floor Mats
- Adjustable Steering Wheel
- Power Windows
- Power Door Locks
- Cruise Control
- A/C
- Daytime Running Lights
- Number of Passenger Doors: 2
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 750
- Maximum Alternator Capacity (amps): 145
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity (qts): - TBD -
- Gross Axle Wt Rating - Front (lbs): 6630
- Gross Axle Wt Rating - Rear (lbs): 11020
- Curb Weight - Front (lbs): 3497
- Curb Weight - Rear (lbs): 1921
- Gross Vehicle Weight Rating Cap (lbs): 14500
- Gross Combined Wt Rating (lbs): 20500
- Suspension Type - Front: Semi Elliptical Spring
- Suspension Type - Rear: Multi-Leaf Spring
- Spring Capacity - Front (lbs): 8440
- Spring Capacity - Rear (lbs): 12900
- Axle Type - Front: I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front (lbs): 6630
- Axle Capacity - Rear (lbs): 11020
- Axle Ratio (:1) - Rear: 4.30
- Shock Absorber Diameter - Front (mm): 42.0
- Shock Absorber Diameter - Rear (mm): 42.0
- Stabilizer Bar Diameter - Front (in): 1.65
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width (in): 12.6 x 3.94
- Front Tire Order Code: 2TC
- Rear Tire Order Code: 3TC
- Front Tire Size: 225/70R19.5
- Rear Tire Size: 225/70R19.5
- Front Tire Capacity (lbs): 6630
- Rear Tire Capacity (lbs): 12460
- Revolutions/Mile @ 45 mph - Front: 643
- Revolutions/Mile @ 45 mph - Rear: 643
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Front Wheel Size (in): 19.5 x 6.0
- Rear Wheel Size (in): 19.5 x 6.0
- Front Wheel Offset (mm): 127
- Rear Wheel Offset (mm): 127
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Bolt Pattern: 6 Hole JIS 8.75"
- Rear Bolt Pattern: 6 Hole JIS 8.75"
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 18.8 - 20.9
- Steering Ratio (:1), At Lock: 18.8 - 20.9
- Turning Diameter - Curb to Curb (ft): 40.7
- Turning Diameter - Wall to Wall (ft): 46.0
- Frame Type: Ladder-Type C-Section
- Sect Modulus Rails Only (in³): 7.20
- Frame RBM (N/A): 316800
- Frame Strength (lbs): 44000
- Frame Thickness (in): 8.50 X 2.76 X 0.24
- Fuel Tank Capacity, Approx (gal): 30.0
- Fuel Tank Location: Frame Rail
- Wheelbase (in): 132.50
- Length, Overall w/o rear bumper (in): 224.00
- Width, Max w/o mirrors (in): 81.30
- Height, Overall (in): 90.90
- Overhang, Front (in): 48.40
- Overhang, Rear w/o bumper (in): 43.1
- Front Bumper to Back of Cab (in): 70.90
- Cab to Axle (in): 110.00
- Cab to End of Frame (in): 153.10
- Ground to Top of Load Floor (in): - TBD -
- Ground to Top of Frame (in): 33.0
- Frame Width, Rear (in): 33.50
- Ground Clearance, Front (in): 8.3
- Ground Clearance, Rear (in): 8.3
- Body Length Default Value (ft): 14
- Passenger Capacity: 3
- Front Head Room (in): 38.40
- Front Leg Room (in): 29.50
- Front Shoulder Room (in): 70.70
- Front Hip Room (in): 67.70
- Vehicle Name: Chevrolet 4500 LCF Gas
- Body Style: Regular Cab Chassis Cab
- Driver Ratio: - TBD -
- Torque @ Clutch Engage (ft-lbs): - TBD -
- Torque Converter: 2.6
- Static Loaded Radius (in): - TBD -
- Max Speed For Gradeability: - TBD -
