• 4-Wheel Antilock Brake Sys
• 5G Modem
• Ford App
• Hill Start Assist
• Manual Locking Hubs
• Mono Beam Coil Spring Frt Suspension W/Stab Bar
• Rear View Camera
• Remote Keyless Entry
• Sync4 W/8" Screen

• 1Touch Dwn Dr/Pass Window
• 4.2" Cluster Display
• Air Cond, Manual Front
• Cloth Sun Visors
• Driver Seat-Manual Lumbar
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Steering:Tilt/Telescope, Cruise & Audio Controls

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Secure Pkg 1 Yr Included
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

STX® Appearance Package

Ford Security Package (1-year included with activation)

Fixed 10,000 lb. GVWR Package

XL F-350® SRW (610A)

Snow Plow Prep Package

Ford Connectivity Package (1-year included)

• TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift and selectable drive modes: normal eco slippery roads tow/haul and off-road
• ENGINE: 7.3L 2V DEVCT NA PFI V8 GAS -inc: Electronic-Locking w/3.73 Axle Ratio
• UPFITTER SWITCHES (6) -inc: Located in overhead console
• STX APPEARANCE PACKAGE -inc: STX fender vent badge Color-Coordinated Full Carpet w/Floor Mats Wheels: 18 Ebony Black Painted Aluminum Body-Color Rear Bumper Tires: LT275/70Rx18E BSW A/T (4) Spare may not be the same as road tire Body-Color Front Bumper LED Fog Lamps LED reflector lamps Painted Grille
• FRONT LICENSE PLATE BRACKET -inc: Standard in states requiring 2 license plates and optional to all others
• DUAL AGM 68 AH BATTERY
• 410 AMP DUAL ALTERNATORS -inc: 250 Amp + 160 Amp
• SNOW PLOW PREP PACKAGE -inc: computer selected springs for snowplow application Note 1: Restrictions apply; see supplemental reference or body builders layout book for details Note 2: May result in deterioration of ride quality when vehicle is not equipped w/snowplow Note 3: Dual battery (86M) recommended w/6.8L or 7.3L gasoline engines; see body builders layout book for details
• ELECTRONIC-LOCKING W/3.73 AXLE RATIO
• PRO POWER ONBOARD - 400W -inc: 1 in-dash mounted outlet
• POWER-SLIDING REAR-WINDOW W/DEFROST
• PRIVACY GLASS
• TRAILER BRAKE CONTROLLER -inc: smart trailer tow connector
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Keyless Entry
• Cruise Control
• A/C
• Vinyl Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• WiFi Hotspot
• Security System
• Immobilizer
• Stability Control
• Front Side Air Bag
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Head Air Bag
• Rear Head Air Bag
• Back-Up Camera

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 160
• Weight Information
• Base Curb Weight (lbs): 6571
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6340
• Curb Weight - Front (lbs): 3896
• Curb Weight - Rear (lbs): 2675
• Gross Vehicle Weight Rating Cap (lbs): 10800
• Gross Combined Wt Rating (lbs): 21000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3450
• Maximum Trailering Capacity (lbs): 14000
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6340
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 6390
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 54.3
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Exterior Dimensions
• Wheelbase (in): 164
• Length, Overall (in): 254.4
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 81.2
• Overhang, Front (in): 38.2
• Cab to Axle (in): 56.1
• Ground to Top of Load Floor (in): 38.6
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.1
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 78.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 33.5
• Second Shoulder Room (in): 65.8
• Second Hip Room (in): 64.7
• Summary

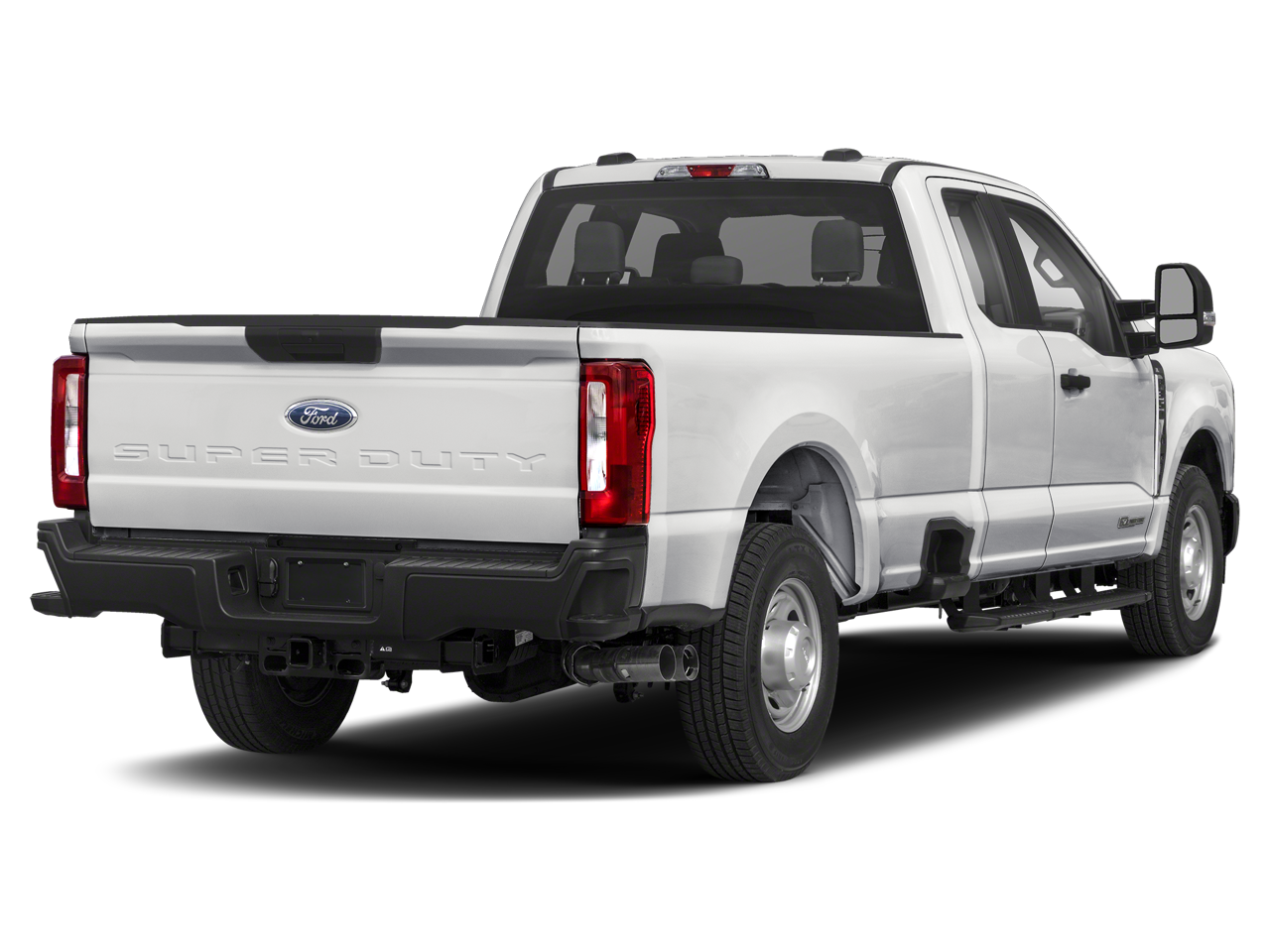

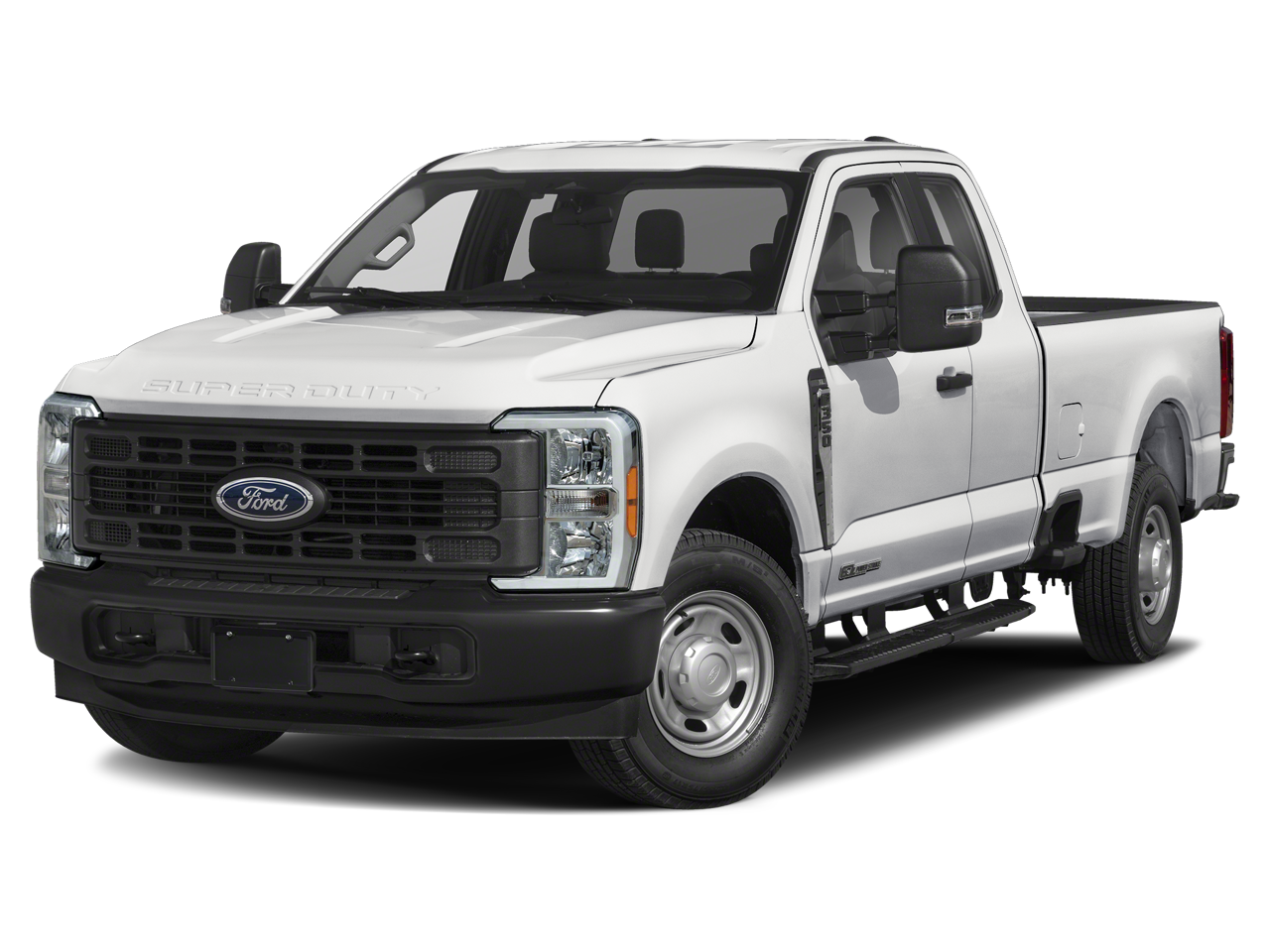

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: SD Super Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
