• 4-Wheel Antilock Brake Sys
• 5G Modem
• Ford App
• Hill Start Assist
• Manual Locking Hubs
• Mono Beam Coil Spring Frt Suspension W/Stab Bar
• Rear View Camera
• Remote Keyless Entry
• Sync4 W/8" Screen

• 1Touch Dwn Dr/Pass Window
• 4.2" Cluster Display
• Air Cond, Manual Front
• Cloth Sun Visors
• Driver Seat-Manual Lumbar
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Steering:Tilt/Telescope, Cruise & Audio Controls

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Secure Pkg 1 Yr Included
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

5th Wheel/Gooseneck Hitch Prep Package

FX4® Off-Road Package

XL F-350® SRW (610A)

STX® Appearance Package

Ford Connectivity Package (1-year included)

Snow Plow Prep Package

XL Driver Assist Package

Ford Security Package (1-year included with activation)

360-Degree Camera Package

Fixed 10,000 lb. GVWR Package

• TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift and selectable drive modes: normal eco slippery roads tow/haul and off-road
• ENGINE: 7.3L 2V DEVCT NA PFI V8 GAS -inc: Electronic-Locking w/3.73 Axle Ratio
• UPFITTER SWITCHES (6) -inc: Located in overhead console
• PLATFORM RUNNING BOARDS
• STX APPEARANCE PACKAGE -inc: STX fender vent badge Color-Coordinated Full Carpet w/Floor Mats Wheels: 18 Ebony Black Painted Aluminum Body-Color Rear Bumper Tires: LT275/70Rx18E BSW A/T (4) Spare may not be the same as road tire Body-Color Front Bumper LED Fog Lamps LED reflector lamps Painted Grille
• FRONT LICENSE PLATE BRACKET -inc: Standard in states requiring 2 license plates and optional to all others
• DUAL AGM 68 AH BATTERY
• 410 AMP DUAL ALTERNATORS -inc: 250 Amp + 160 Amp
• ELECTRONIC-LOCKING W/3.73 AXLE RATIO
• PRO POWER ONBOARD - 400W -inc: 1 in-dash mounted outlet
• XL DRIVER ASSIST PACKAGE -inc: Pre-Collision Assist Automatic Emergency Braking (AEB) and forward collision warning Automatic High Beam
• LED BOX LIGHTING -inc: LED Center High-Mounted Stop Lamp (CHMSL)
• LED ROOF CLEARANCE LIGHTS
• FX4 OFF-ROAD PACKAGE -inc: Hill Descent Control Off-Road Specifically Tuned Shock Absorbers front/rear Transfer Case & Fuel Tank Skid Plates Unique FX4 Off-Road Box Decal
• ENGINE BLOCK HEATER -inc: grille cover
• POWER-SLIDING REAR-WINDOW W/DEFROST
• PRIVACY GLASS
• SNOW PLOW PREP PACKAGE -inc: computer selected springs for snowplow application Note 1: Restrictions apply; see supplemental reference or body builders layout book for details Note 2: May result in deterioration of ride quality when vehicle is not equipped w/snowplow Note 3: Dual battery (86M) recommended w/6.8L or 7.3L gasoline engines; see body builders layout book for details Note 4: Tailgate removal kit w/protective caps can be provided free of charge by your authorized dealer Failure to install the protective caps results in damage to the electrical system not covered by the vehicle warranty See owner's manual for details
• TRAILER BRAKE CONTROLLER -inc: smart trailer tow connector
• 5TH WHEEL/GOOSENECK HITCH PREP PACKAGE -inc: 5 pickup bed attachment points w/plugs 1 frame under-bed cross member and 1 integrated 7-pin connector on driver's side pickup bed wall 5th wheel hitch compatibility: the 5th Wheel/Gooseneck Prep Package (53W) is compatible w/the factory orderable 5th Wheel Hitch Kits (15K and 15L) and dealer-installed Ford accessories 5th Wheel Hitch Kit by Reese - part #BC3Z-19D520-A (8ft box only) The prep package is also compatible w/Reese Signature Series 5th wheel hitch kits updated w/a new Leg Service Kit - part #BC3Z-A00A25-A (8ft box only) The 5th Wheel Hitch Kit (15K) 5th Wheel Hitch Kit (15L) and dealer-installed Ford accessories 5th Wheel Hitch Kit by Reese - part #BC3Z-19D520-A is not released to the short box (6.75ft box) Note: the short pickup box provides less clearance between the cab and 5th wheel trailer compared to long box pickups The receiver centerline of the hitch should be mounted at least 2 forward from the rear-axle of the
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Keyless Entry
• Cruise Control
• A/C
• Vinyl Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• WiFi Hotspot
• Security System
• Immobilizer
• Stability Control
• Front Side Air Bag
• Tire Pressure Monitor
• Front Head Air Bag
• Rear Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks
• Back-Up Camera

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 160
• Weight Information
• Base Curb Weight (lbs): 6608
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6340
• Curb Weight - Front (lbs): 3870
• Curb Weight - Rear (lbs): 2738
• Gross Vehicle Weight Rating Cap (lbs): 10600
• Gross Combined Wt Rating (lbs): 21000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3450
• Maximum Trailering Capacity (lbs): 14000
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6340
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 6390
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 53
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Exterior Dimensions
• Wheelbase (in): 160
• Length, Overall (in): 250
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 81.3
• Overhang, Front (in): 38.2
• Cab to Axle (in): 39.9
• Ground to Top of Load Floor (in): 36.9
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.9
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 65.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

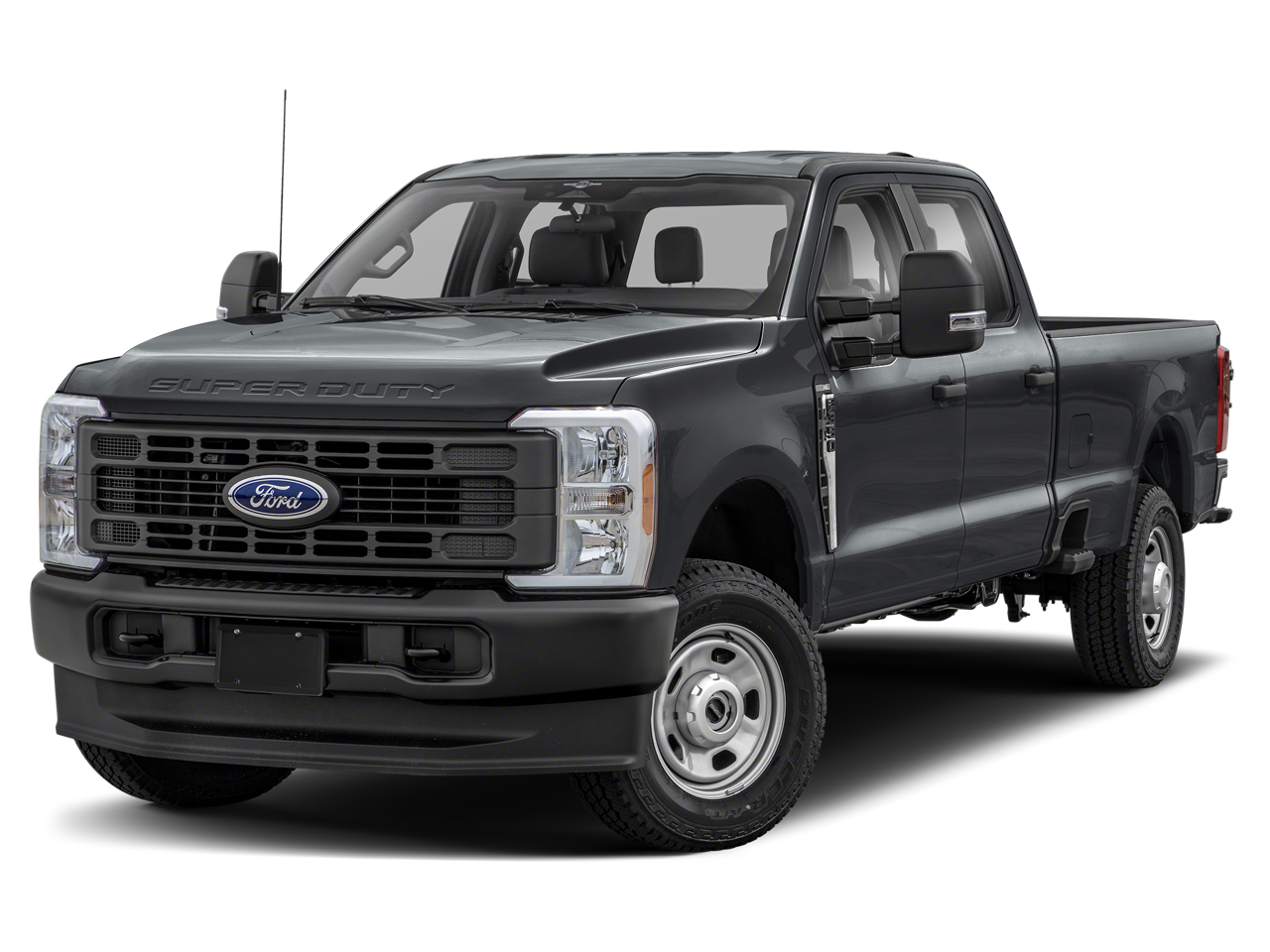

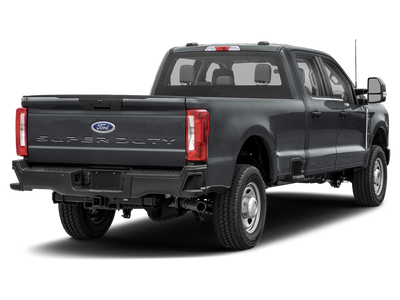

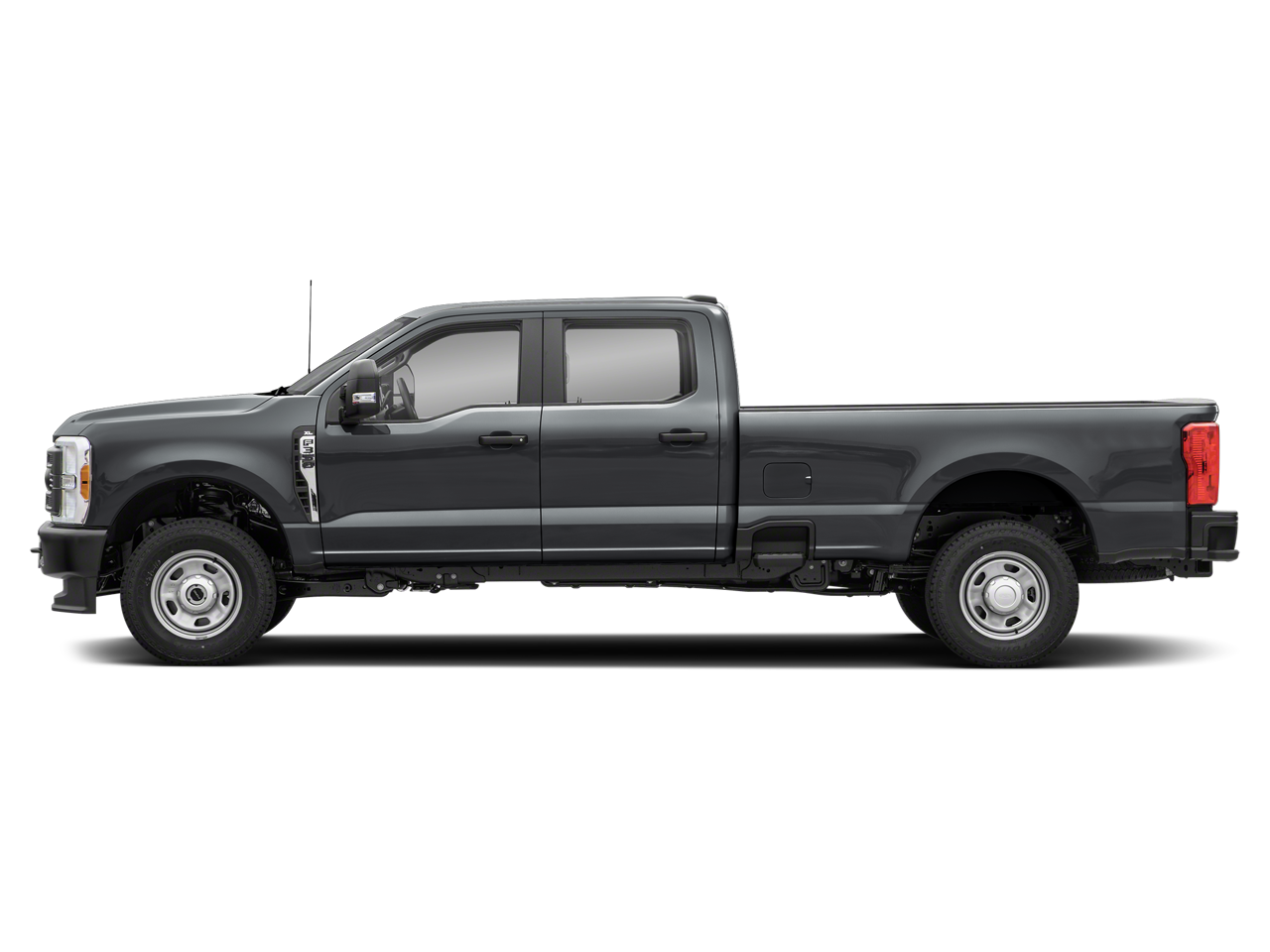

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: SD Crew Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
