• 360-Degree Camera
• 5G Modem
• B&O Unleashed Sound System
• Ford App
• Ford Co-Pilot360assist2.0
• Intelligent Access W/Push Button Start
• Mono Beam Coil Spring Frt Suspension W/Stab Bar
• Onboard Scale/Smart Hitch
• Rear Parking Sensors
• Reverse Brake Assist
• Sync4 W/Evr & 12" Screen
• Wireless Charging Pad

• 12" Cluster Display
• 1Touch Up/Down Dr/Pass Win
• Adaptive Cruise Control
• Adjust Pedals W/Memory
• Ambient Lighting-Fixed
• Dual-Zone Electronic Auto Climate Control
• Head-Up Display
• Lthr Wrapped Htd Str Whl
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Pwr Driver And Pass Seat
• Tilt/Telescope Str Column

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Led Ctr High Mnt Stop Lamp
• Secure Pkg 1 Yr Included
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Fixed 10,000 lb. GVWR Package

Platinum® F-350® SRW (713A)

Ford Connectivity Package (1-year included)

360-Degree Camera Package

5th Wheel/Gooseneck Hitch Prep Package

Snow Plow Prep Package

Ford Security Package (1-year included with activation)

• ELECTRONIC-LOCKING W/3.55 AXLE RATIO
• FRONT & REAR WHEEL WELL LINERS -inc: Rear wheel well liners are already standard
• TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift and selectable drive modes: normal eco slippery roads tow/haul and off-road (STD)
• TWIN PANEL POWER MOONROOF -inc: map lights and moonroof switches
• FRONT LICENSE PLATE BRACKET -inc: Standard in states requiring 2 license plates and optional to all others
• 410 AMP DUAL ALTERNATORS -inc: 250 Amp + 160 Amp
• SNOW PLOW PREP PACKAGE -inc: computer selected springs for snowplow application Note 1: Restrictions apply; see supplemental reference or body builders layout book for details Note 2: May result in deterioration of ride quality when vehicle is not equipped w/snowplow Note 3: Dual battery (86M) recommended w/6.8L or 7.3L gasoline engines; see body builders layout book for details
• ALL-WEATHER FLOOR MATS -inc: Doesn't include carpet floor mats
• ENGINE: 6.7L HIGH OUTPUT POWER STROKE V8 DIESEL -inc: Turbo diesel B20 manual push-button engine-exhaust braking and Operator Commanded Regeneration (OCR) 48 Gallon Fuel Tank 250 Amp Alternator GVWR: 12 400 lb Payload Package 3.31 Axle Ratio Dual 68 AH AGM 750 CCA Batteries
• TIRES: LT275/65RX20E BSW A/T (4) -inc: Spare may not be the same as road tire (STD)
• 5TH WHEEL/GOOSENECK HITCH PREP PACKAGE -inc: 5 pickup bed attachment points w/plugs 1 frame under-bed cross member and 1 integrated 7-pin connector on driver's side pickup bed wall 5th wheel hitch compatibility: the 5th Wheel/Gooseneck Prep Package (53W) is compatible w/the factory orderable 5th Wheel Hitch Kits (15K and 15L) and dealer-installed Ford accessories 5th Wheel Hitch Kit by Reese - part #BC3Z-19D520-A (8ft box only) The prep package is also compatible w/Reese Signature Series 5th wheel hitch kits updated w/a new Leg Service Kit - part #BC3Z-A00A25-A (8ft box only) The 5th Wheel Hitch Kit (15K) 5th Wheel Hitch Kit (15L) and dealer-installed Ford accessories 5th Wheel Hitch Kit by Reese - part #BC3Z-19D520-A is not released to the short box (6.75ft box) Note: the short pickup box provides less clearance between the cab and 5th wheel trailer compared to long box pickups The receiver centerline of the hitch should be mounted at least 2 forward from the rear-axle of the
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Aluminum Wheels
• Conventional Spare Tire
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Privacy Glass
• Fog Lamps
• Automatic Highbeams
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Floor Mats
• WiFi Hotspot
• Security System
• Immobilizer
• Stability Control
• Front Side Air Bag
• Front Collision Mitigation
• Lane Departure Warning
• Tire Pressure Monitor
• Front Head Air Bag
• Rear Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks
• Back-Up Camera

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250 & 160
• Weight Information
• Base Curb Weight (lbs): 6883
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7230
• Curb Weight - Front (lbs): 3952
• Curb Weight - Rear (lbs): 2931
• Gross Vehicle Weight Rating Cap (lbs): 11499
• Gross Combined Wt Rating (lbs): 25200
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4425
• Maximum Trailering Capacity (lbs): 18000
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7230
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TCW
• Rear Tire Order Code: TCW
• Front Tire Size: LT275/65SR20
• Rear Tire Size: LT275/65SR20
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 7180
• Rear Tire Capacity (lbs): 7180
• Revolutions/Mile @ 45 mph - Front: 612
• Revolutions/Mile @ 45 mph - Rear: 612
• Wheels
• Front Wheel Size (in): 20 X 8
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 53
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Exterior Dimensions
• Wheelbase (in): 160
• Length, Overall (in): 250
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 81.3
• Overhang, Front (in): 38.2
• Cab to Axle (in): 39.9
• Ground to Top of Load Floor (in): 36.9
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.9
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 65.4
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

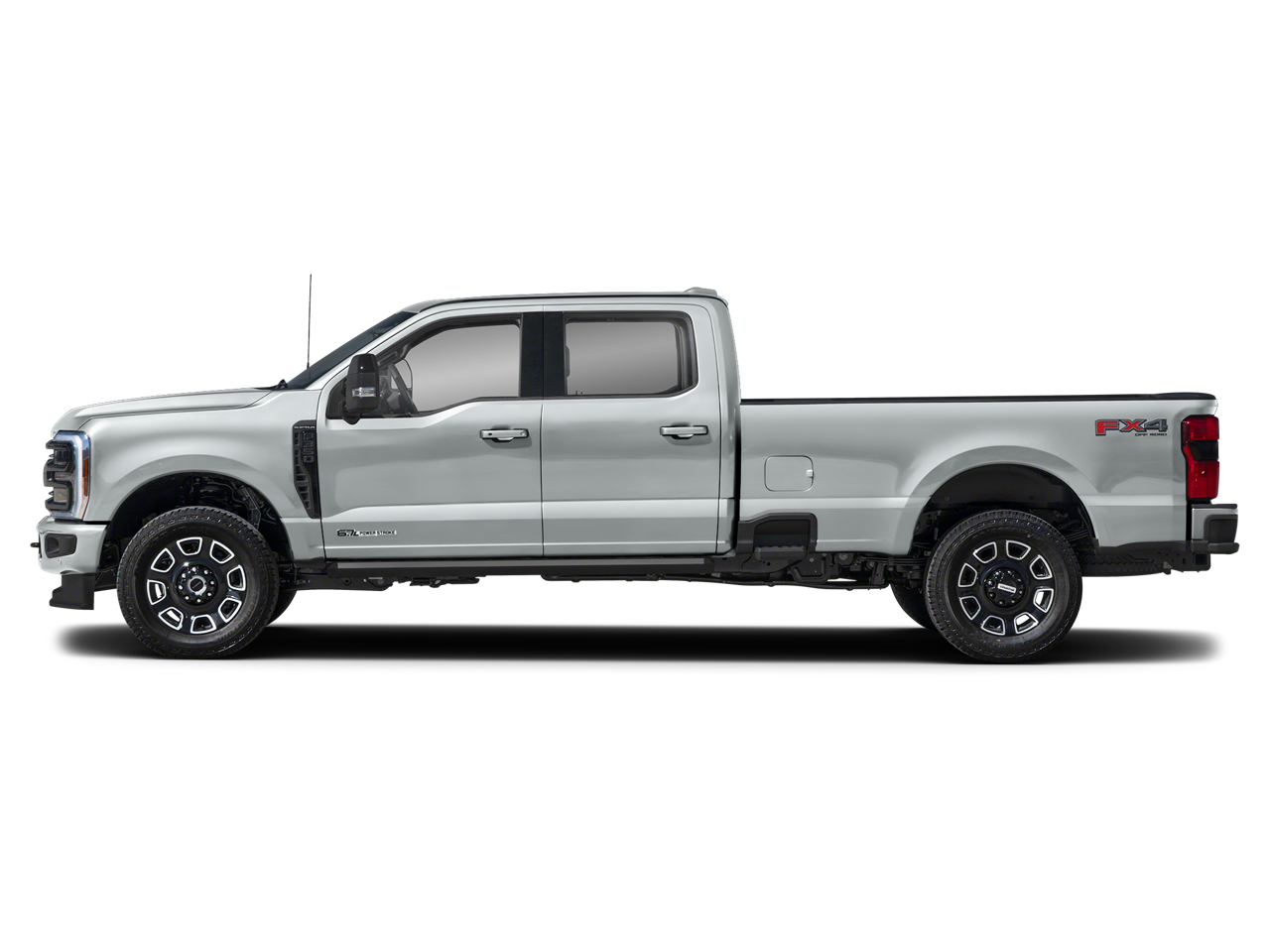

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: SD Crew Cab
• Body Code: T
